LNK WiFi irrigation system for clay courts

Range: 6.7 to 13.7 meters.
Pressure: 1.7 to 4.1 bar.
Flow rate: 0.34 to 1.91 m3/h.

• Double female thread lower inlet: ½” (15/21) and ¾” (20/27)

Female side inlet: ½” (15/21)
Trajectory angle:

23° for nozzles No. 06, 07, 08, 10 and 12
11° for nozzles 07-LA and 10-LA

• MPR Nozzles: 06 (red), 07 (black), 08 (blue), 10 (yellow), 12 (beige)
• Low angle nozzles: 07-LA (black), 10-LA (yellow)

1″ Barcelona aluminum fitting for connection to irrigation hose.

• .• Model: 10 cm
• Sector configuration: from 40° to 360°
• Factory-installed rubber cover
• Top-side sector adjustment
• Quick sector verification mechanism
• Water-lubricated gear drive
• Nozzle types: 27 in total
• Nozzle sets: #1 to #12 red, 1.5 to 8.0 blue, #4 LA to #10 LA gray
• Warranty period: 2 years

Push-button irrigation solution for tennis courts that quickly and evenly wets the surface, with pre-set time and flow to prevent flooding and save water. Compatible with clay and resin surfaces, easy to install and maintain, with protected button and perimeter sprinkler irrigation. Request information.

Flexible hose made of plasticized food-grade PVC, with polyester textile reinforcement embedded in TPU resin, mechanically strong, blue exterior. Does not stain pavements when rubbed. Resistant to detergents, disinfectant solutions and low-content fats. Resistant to atmospheric agents. Working temperature: -5ºC to +60ºC

Price per 50 meters.

• Models: 10 and 15 cm
• Models with stainless steel riser: 10 and 15 cm
• Arc setting: 50 to 360 degrees
• Factory-installed rubber cover
• Top-adjustable arc
• Quick arc verification mechanism
• Water-lubricated gear drive
• Nozzle types: 12
• Nozzle models: #4 to #2
• Warranty period: 5 years

• Barcelona 1″ threaded aluminum fitting for lance or nozzle.

Female or male

Fountain with a sober structure, square iron body with Ferrus treatment to prevent corrosion.

Finished with epoxy primer and gray hammered powder polyester paint.

Fixing plate-nickel-plated steel push button tap (UM510G). Angular frame and galvanized steel drain grid.

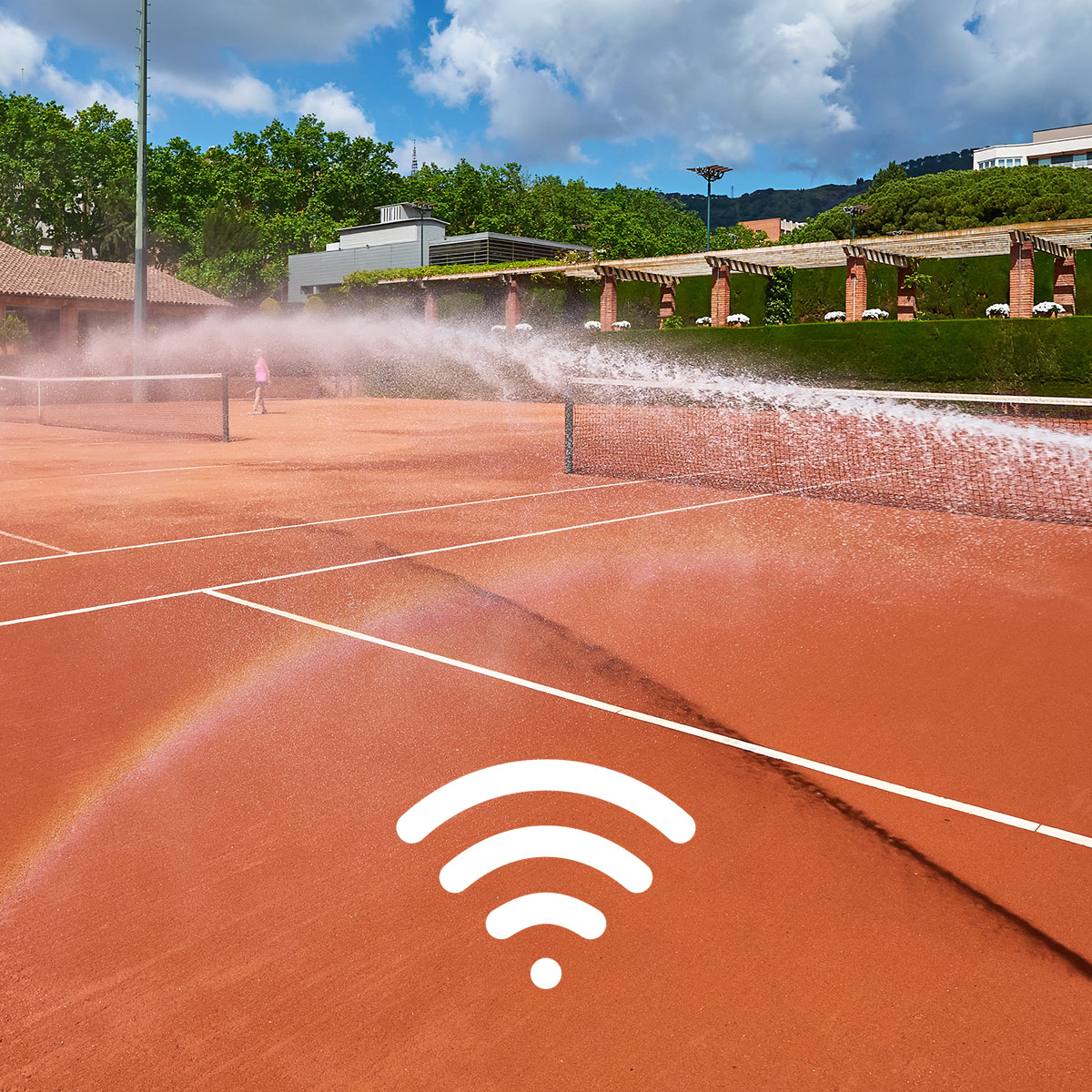

Control the irrigation of your court from your mobile (Wi-Fi) with programming by sectors, adjustable times and flow rates, and manual activation option. Homogeneous coverage on clay, easy installation and maintenance. Request information. Custom projects.
